Diameter of Binary Tree

Problem Statement

The diameter of a binary tree is defined as the length of the longest path between any two nodes within the tree. The path does not necessarily have to pass through the root.

The length of a path between two nodes in a binary tree is the number of edges between the nodes.

Given the root of a binary tree root, return the diameter of the tree.

Example 1:

# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
#

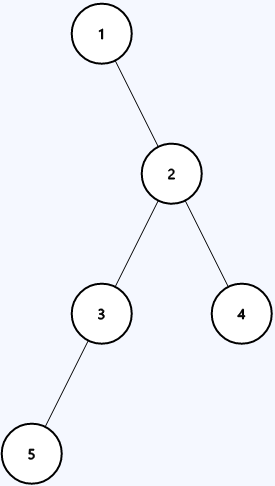

# Input: root = [1,None,2,3,4,5]
# Output: 3
#
# Explanation: 3 is the length of the path [1,2,3,5] or [5,3,2,4].

Example 2:

# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right
#
# Input: root = [1,2,3]
# Output: 2

Constraints:

  • 1 <= number of nodes in the tree <= 100
  • -100 <= Node.val <= 100

You should aim for a solution with O(n) time and O(n) space, where n is the number of nodes in the tree.

You should aim for a solution with O(n) time and O(n) space, where n is the number of nodes in the tree.

Hint 1

The diameter of a binary tree is the maximum among the sums of the left height and right height of the nodes in the tree. Why?

Hint 2

Because the diameter of a binary tree is defined as the longest path between any two nodes in the tree. The path may or may not pass through the root. For any given node, the longest path that passes through it is the sum of the height of its left subtree and the height of its right subtree.

Hint 3

A brute force solution would be to go through every node in the tree and compute its left height and right height, returning the maximum diameter found. This would be an O(n^2) solution. Can you think of a better way? Maybe we can compute the diameter as we calculate the height of the tree? Think about what information you need from each subtree during a single traversal.

Hint 4

We can use the Depth First Search (DFS) algorithm to calculate the height of the tree. At each node, the subtrees return their respective heights (left_height and right_height). Then we calculate the diameter at that node as d = left_height + right_height. We use a global variable to update the maximum diameter as needed during the traversal.

Solution

Brute Force

# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right


def diameter_of_binary_tree(root: Optional[TreeNode]) -> int:
    if not root:
        return 0


    left_height = max_height(root.left)
    right_height = max_height(root.right)
    diameter = left_height + right_height
    sub = max(diameter_of_binary_tree(root.left),
              diameter_of_binary_tree(root.right))
    return max(diameter, sub)




def max_height(root: Optional[TreeNode]) -> int:
    if not root:
        return 0


    return 1 + max(max_height(root.left), max_height(root.right))

Time complexity: O(n^2) Space complexity: O(n)

# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right


def diameter_of_binary_tree(root: Optional[TreeNode]) -> int:
    res = 0


    def dfs(root):
        nonlocal res


        if not root:
            return 0
        left = dfs(root.left)
        right = dfs(root.right)
        res = max(res, left + right)


        return 1 + max(left, right)


    dfs(root)
    return res

Time complexity: O(n) Space complexity: O(h)

Iterative DFS

# Definition for a binary tree node.
# class TreeNode:
#     def __init__(self, val=0, left=None, right=None):
#         self.val = val
#         self.left = left
#         self.right = right


def diameter_of_binary_tree(root: Optional[TreeNode]) -> int:
    stack = [root]
    mp = {None: (0, 0)}


    while stack:
        node = stack[-1]


        if node.left and node.left not in mp:
            stack.append(node.left)
        elif node.right and node.right not in mp:
            stack.append(node.right)
        else:
            node = stack.pop()


            left_height, left_diameter = mp[node.left]
            right_height, right_diameter = mp[node.right]


            mp[node] = (1 + max(left_height, right_height),
                       max(left_height + right_height, left_diameter, right_diameter))


    return mp[root][1]

Time complexity: O(n) Space complexity: O(n)
